Propeller 4Q
+ Collaboration diagram for Propeller 4Q:

\[ \tan{\beta} = \frac{V_a}{0.7 \pi n D} \]

\[ C_t = \frac{T}{\rho V_{r}^2 \pi D^2/8} \]

\[ C_q = \frac{Q}{\rho V_{r}^2 \pi D^3/8} \]

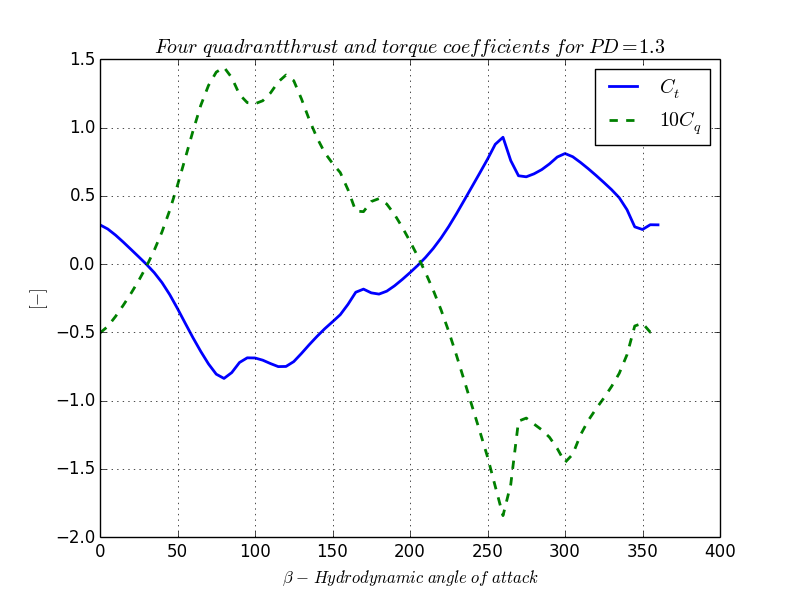

C_t and C_q curves for a single PD ratio

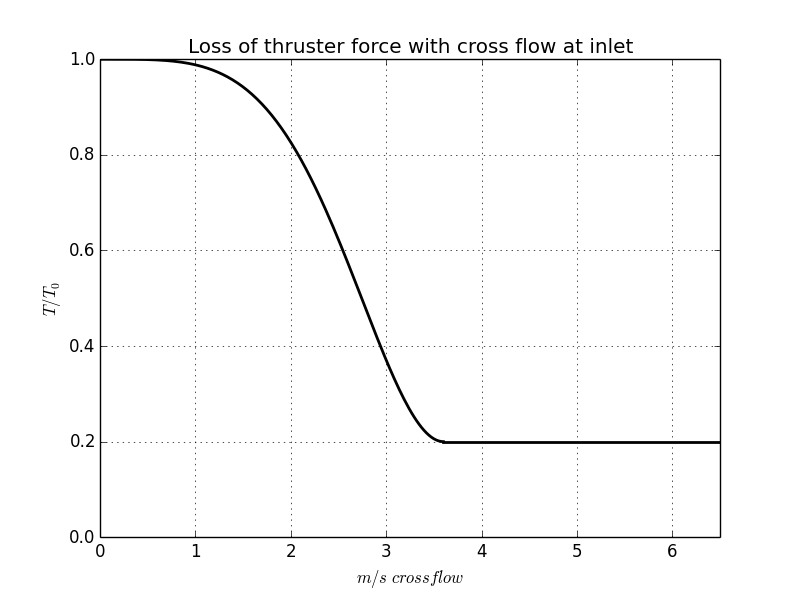

Loss of propeller/thruster force due to cross flow at inlet

Input ports

Name Width Description
QuaternionNED 4

The unit vector along the propeller thrust direction

RPM 1

The rotational speed of the propeller in RPM

PD 1

The current pitch/diameter ratio of the propeller

VelocityNED 3

The linear velocity which the propeller travels through the water in north-east-down coordinates

PositionNED 3

The position of the propeller in north-east-down coordinates

Output ports

Name Width Description
BetaT 1

The percentage of thrust loss due to ventilation [-]

BetaQ 1

The percentage of torque loss due to ventilation [-]

Ct 1

Currently used thrust coefficient

Cq 1

Currently used torque coefficient

Us 1

The propeller induced velocity on the water particle traveling through the propeller disk in m/s

Rs 1

The radius of the propeller downstream jet in meters

BetaH 1

Current hydrodynamic angle of attack

PD 1

Current propeller PD value

ForceNED 3

The force produced by the propeller in north-east-down coordinates

TorqueNED 3

The torque produced by the propeller in north-east-down coordinates

ForceBody 3

The force produced by the propeller in body coordinates

TorqueBody 3

The torque produced by the propeller in body coordinates

ForceCorrectedNED 3

The force produced by the propeller in north-east-down coordinates

TorqueCorrectedNED 3

The torque produced by the propeller in north-east-down coordinates

ForceCorrectedBody 3

Force corrected for loss effects in body frame

TorqueCorrectedBody 3

The torque produced by the propeller in body coordinates

ShaftTorqueBody 1

Shaft torque in body frame

ShaftTorqueCorrectedBody 1

Shaft torque corrected for losses in body frame

ShaftPower 1

Shaft power consumed

ShaftPowerCorrected 1

Shaft power consumed corrected for losses

Configuration parameters

Name Width Description
D 1

Propeller diameter

PropellerType 1

Type op propeller(used for ventilation model)

WakeFraction 1

Hull wake fraction w, default 0: the inflow velocity is (1 - w) times the free stream velocity along the shaft

ThrustDeduction 1

Thrust deduction factor t, default 0: the effective thrust is (1 - t) times the propeller thrust (the deduction comes from the low pressure region the propeller generates on the hull)

PD N

Number of PD values in use

Ct \(0...N\) M Various thrust coefficients
Cq \(0...N\) M Various torque coefficients
ShaftPowerScaling 1

Linear scale applied to shaft power output

PropellerThrustScaling 1

Linear scale applied to thrust output

ReverseRotationDirection 1 Reverse rotation direction in visualization
AzimuthMainThrustLoss 1 If true the thrust loss from cross flow depends on the inflow angle (1 below 45 degrees, 0.8 above 90 degrees, and no loss when the surge speed is below 1 knot), and the torque has no loss; if false it depends on the body y velocity (the thrust factor falls to 0.2 and the torque factor to 0.75 at 7 knots of cross flow and above). Default false

States

Name Width Description
betaT 1 Ventilation state of the thrust. Initial value 1
betaQ 1 Ventilation state of the torque. Initial value 1
Vz_low 1 Axial flow state of the low speed propeller jet. Initial value 0
Vz_high 1 Axial flow state of the high speed propeller jet. Initial value 0
w1 1 Rotational flow state. Initial value 0. Its derivative is set to 0
w2 1 Rotational flow state. Initial value 0. Its derivative is set to 0
PropellerRotation 1 The rotation angle of the propeller (integral of RPM/60). Initial value 0. Only in a build with visualization

References

[1] Volker Bertram, "Practical Ship Hydrodynamics", Butterworth and Heinemann, Oxford 2000 [2] Ralf Bachmayer, Louis L. Whitcomb and Mark A. Grosenbaugh, "An Accurate Four-Quadrant Nonlinear Dynamical Model for Marine Thrusters: Theory and Experimental Validation", IEEE Journal of Oceanic Engineering, Vol. 25, No. 1, January 2000
