Pulse

Generate square waves pulses at regular intervals.

Collaboration diagram for Pulse:

Generates a square wave pulse at regular intervals. It can be configured with amplitude, period, pulse width, phase delay.

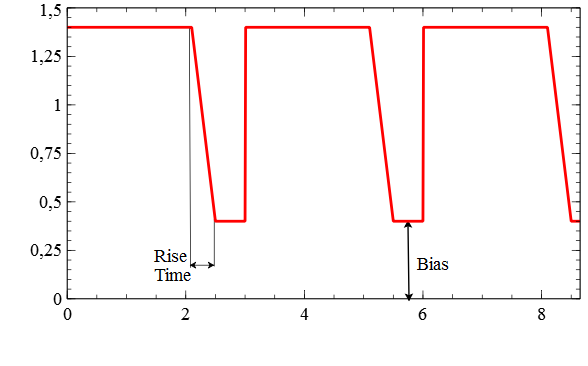

An example of a square wave pulse.

Author

Benjamin Scholz

Date

06.09.2007 BSC: Initial version.

19.07.2011 KGA: Updated to FhSim 2.0 and documented

Example configuration excerpt

<Lib
  LibName   = "fhsim_base"
  SimObject = "Src/Pulse"
  Name      = "pulse"
  PortWidth = "1"
  Amplitude = "1"
  Bias      = "0.4"
  Delay     = "2"
  RiseTime  = "0.4"
  Width     = "1"
  Period    = "3"
/>

Input Ports

This function has no inputs.

Output Ports

Name	Width	Description
Out	<PortWidth>	The output signal
OutDot	<PortWidth>	The derivative of the output signal

Configuration parameters

Name	Width	Description
PortWidth	1	The number of elements in the signal.
Amplitude	<PortWidth>	The amplitude of each pulse.
Period	<PortWidth>	The pulse period (time between pulse centers).
Width	<PortWidth>	The width of the nonzero portion of the pulse [sec]
RiseTime	<PortWidth>	The time from pulse start to final value, and from final value to 0. Must smaller than Width/2
Delay	<PortWidth>	The delay of the pulse train, relative to the first pulse center (starts at T=T_start).
Bias	<PortWidth>	The bias of the pulse signal.

Initial conditions

There are no initial conditions for this function.

Full example file

<Contents>
  <OBJECTS>
    <Lib
        LibName="base"
        SimObject="Src/Pulse"
        Name="A"
    />

  </OBJECTS>

  <INTERCONNECTIONS>
    <Connection
    />
  </INTERCONNECTIONS>

  <INITIALIZATION>
    <InitialCondition
    />
  </INITIALIZATION>

  <SIMULATION>
    <Timing TStart="0" TEnd="11.0"/>
    <Integrator Method="RK45_i" NumCores="1" LogStates="1" UseRSSNorm="0">
      <StepControl StepMax="0.002" StepMin="0.00000001" AbsTol="1e-3" RelTol="1e-3"/>
    </Integrator>

  </SIMULATION>

<OBSERVERS>
    <FileOutput TOutput="0, 0:0.5:10, 100" Select="objects:all"/>
  </OBSERVERS>
</Contents>

This SimObject is referred to as Src/Pulse
