Demux

Demux SimObject that takes a std::vector as input and splits it into several output ports.

Collaboration diagram for Demux:

A demux (or demultiplexer) is a device taking a single input signal and selecting one of many data-output-lines, which is connected to the single input. The sum of all output port sizes must be equal to the input port size. Implementation class is CDemux.

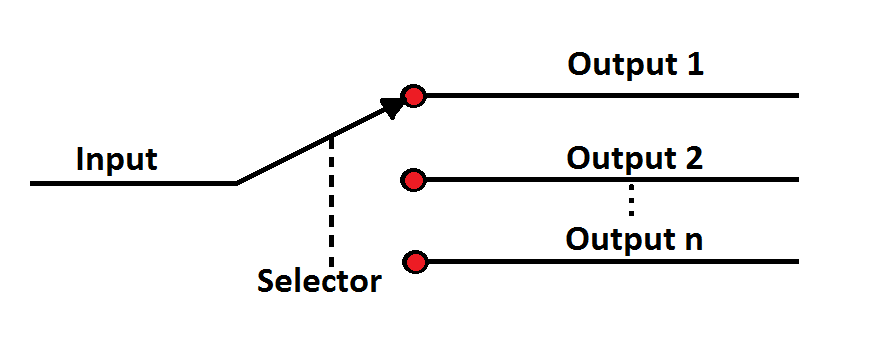

A figure illustrating the principles of demultiplexing.

Author

Karl-Johan Reite

Date

02.03.2007 KJR: Initial version

20.07.2011 KGA: Ported to 2.0

Example configuration excerpt

<Lib
  LibName       = "fhsim_base"
  SimObject     = "Signal/Demux"
  Name          = "A"
  NumOutput     = "3"
  OutPortWidth1 = "1"
  OutPortWidth2 = "1"
  OutPortWidth3 = "1"
/>
...
<Connection
  A.In="1,2,3"
/>

Input Ports

Name	Width	Description
In	<NumOutput>	The input port

Output Ports

Name	Width	Description
Out1 .. Out<NumOutput>	<OutPortWidth>	The input signal "De-multiplexed" into <NumOutput> ports of sizes OutPortWidth1.. OutPortWidth<NumOutput>, which sums up to <NumOutput>.

Configuration parameters

Name	Width	Description
NumOutput	1	The number of output signals
OutPortWidth1 .. OutPortWidth<NumOutput>	-	The number of elements in each individual output signal

Initial conditions

There are no initial conditions for this function.

Full example file

<Contents>
  <OBJECTS>
    <Lib
        LibName="base"
        SimObject="Signal/Demux"
        Name="A"
        NumOutput="3"
        OutPortWidth1="1"
        OutPortWidth2="1"
        OutPortWidth3="1"
        />
    <Lib
        LibName="base"
        SimObject="Body/Mass"
        Name="M"
        Scale="1"
        Mass="1"
        Material="Simple/Red"
    />

  </OBJECTS>

  <INTERCONNECTIONS>
    <Connection
    A.In="M.Pos"
    M.Force="1,0,0"
    />
  </INTERCONNECTIONS>

  <INITIALIZATION>
    <InitialCondition
    M.Pos="0,10,100"
    M.Vel="0,0,0"
    />
  </INITIALIZATION>

  <SIMULATION>
    <Timing TStart="0" TEnd="6.0"/>
    <Integrator Method="RK45_i" NumCores="1" LogStates="1" UseRSSNorm="0">
      <StepControl StepMax="0.002" StepMin="0.00000001" AbsTol="1e-3" RelTol="1e-3"/>
    </Integrator>

  </SIMULATION>

<OBSERVERS>
    <FileOutput TOutput="0, 5, 30" Select="objects:all"/>
  </OBSERVERS>
</Contents>

This SimObject is referred to as Signal/Demux
